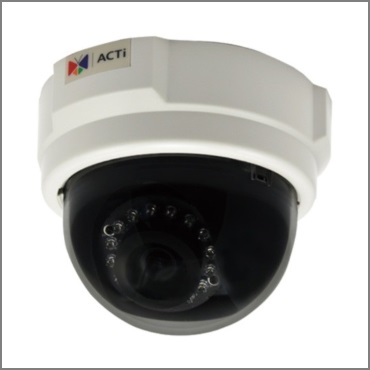

ACTi E52 1MP Indoor Dome with D/N, Adaptive IR, Basic WDR, Fixed Lens
Key features
• 1 Megapixel with 720p
• Day & Night with Adaptive IR LED
• Fixed Lens with f3.6mm / F1.8
• Basic WDR (74 dB)
• 30 fps at 1280 x 720
Key features
• 1 Megapixel with 720p
• Day & Night with Adaptive IR LED
• Fixed Lens with f3.6mm / F1.8
• Basic WDR (74 dB)
• 30 fps at 1280 x 720
| Datasheet | Download PDF |
|---|---|
| Device Type | Fixed Indoor Dome Camera |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/4" |
| Day / Night | Yes |
| Superior Low Light Sensitivity | No |
| Minimum Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Color to B/W switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700~1100nm |
| IR LED | Adaptive IR LED (IR Exposure Compensation) x 10 (850nm) |
| IR Working Distance | 30 m (0 lux, 30 IRE, Gain 255, Auto shutter mode) |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Focal Length / Aperture | Fixed focal, f3.6 mm / F1.8 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 60.6° |
| Viewing Angle Adjustment | Pan: 0° - 330°; Tilt: 20° - 90° |
| Compression | H.264 HP, MJPEG |
| Max. Frame Rate vs. Resolution | 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28 Kbps - 6 Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Image Enhancement | Basic WDR (74 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | User defined text on video |
| Image Orientation | Image flip and mirror |
| Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control |
| Alarm Trigger | Video motion detection (3 regions) |
| Alarm Response | Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, Snapshot to FTP server |
| Power Source / Consumption | PoE Class 2 (IEEE802.3af) / 4.26 W (IR on) |
| Weight | 292 g (0.64 lb) |
| Dimensions (Ø x H) | 128 mm x 99 mm (5.12" x 3.90") |
| Mount Type | Surface, Pendant, Wall, Corner, Pole, Flush, Gang box |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | 10% ~ 85% RH |
| Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B) |
| Unified Solution | Fully compatible with ACTi software |
| ISV Integration | Software Development Kit (SDK) available; ONVIF compliant |
| Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality) Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) |
