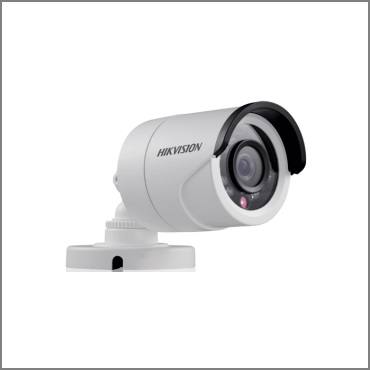

Hikvision DS-2CD2010-I 1.3MP Bullet Camera

Key features

• 1.3 megapixel high resolution
• HD real-time video
• 3D DNR & DWDR & BLC
• IR LEDs: up to 30m
• IP66
• Vandal-proof
• PoE





Specification
Datasheet Download
Image Sensor 1 / 3" Progressive Scan CMOS
0.01 lux@F1.2, AGC ON
0 lux with IR
Shutter time 1/25s (30s) ~ 1/100,000s
Lens 4mm @F2.0, angle of view: 69.4°
Lens mount M12
Day & night IR cut filter with auto switch
Digital noise reduction 3D DNR
Wide dynamic range Digital WDR
Video compression H.264 / MJPEG
H.264 codec profile Main profile
Bit rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. image resolution 1280 × 960
Frame rate 50Hz: 25fps (1280 × 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
BLC Yes, zone configurable
Network storage NAS
Alarm trigger Motion detection, tampering alarm
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System compatibility ONVIF, PSIA, CGI
General functionalities User authentication, watermark
Communication interface 1 RJ45 10M / 100M ethernet port
Operating conditions -30°C ~ 60°C humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3af)
Power consumption Max. 5W (max. 7W with ICR on)
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
Ingress protection IP66
IR range approx 20 to 30 meters
Dimensions F 111 × 82 mm
Weight 500g (1.1 lbs)
