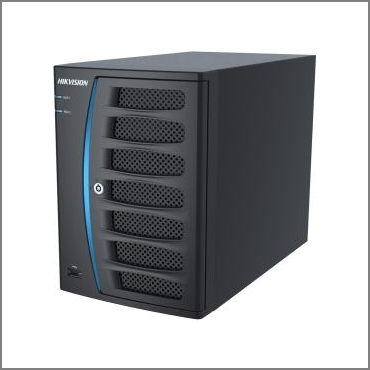

Hikvision DS7604NIVP 4CH NVR
Key features
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• HDD quota and group management
• Vertical design for easy HDD installation
• HDD hot-swap supported
Specification
Key features
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• HDD quota and group management
• Vertical design for easy HDD installation
• HDD hot-swap supported
Specification
| Datasheet | Download |
|---|---|
| IP video input | 4-ch |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kO) |
| Incoming bandwidth | 20Mbps |
| Decoding resolution | 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI/VGA output | 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
| Audio output | 1-ch, RCA (Linear, 1kO) |
| Playback resolution | 5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Synchronous playback | 4-ch, 720P / 2-ch, 1080P / 1-ch, 5MP |
| SATA | 2 SATA interfaces for 2 HDDs |
| Capacity | Up to 4TB for each disk |
| Network interface | 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface |
| Serial interface | 1 RS-485 half-duplex interface |
| USB interface | 2 × USB 2.0 |
| Power supply | 100~240VAC, 47~63Hz, 3A |
| Consumption | = 10 W (without hard disk) |
| Working temperature | -10°C ~ +55°C |
| Working humidity | 10 % ~ 90 % |
| Chassis | Vertical chassis |
| Dimensions | 130 × 236 × 180mm |
| Weight | = 2 Kg |
