FD816C-HF2
• 2-Megapixel CMOS Sensor
• 30 fps @ 1920 x 1080
• WDR Pro (100dB) to Provide Extreme Visibility in High Light Contrast Scenes
• SNV (Supreme Night Visibility)
• 3D Noise Reduction for Low-light Conditions
• Smart Stream to Optimize Bandwidth Efficiency
• Built-in IEEE 802.3af Compliant PoE
• Real-time H.264 and MJPEG Compression (Dual Codec)
• 70° Tilt Lens
VIVOTEK FD816C-HF2 Intro Video
The VIVOTEK FD816C-HF2 is a recessed-mount fixed dome network camera offering up to 30 fps at 2-Megapixel resolution with superb image quality, even in the darkest hours of the night. Due to its compact size, the camera is able to blend into any surroundings such as banks, retail stores, restaurants, offices and more.
Featuring the improved Wide Dynamic Range Technology, WDR Pro, the FD816C-HF2 provides superior visibility in high-contrast lighting environments with a 2-shutter capture method,and with SNV technology, it makes high-quality full-color surveillance video possible under low-light conditions. At the other end of the spectrum, 3D Noise Reduction Technology allows users to enjoy an increased level of image detail in extremely dark environments without consuming or wasting unreasonably high bandwidth.
To dramatically reduce file sizes and conserve valuable network bandwidth, the FD816C-HF2 supports Smart Stream and industry-standard H.264 compression technology. Combined with the ST7501 multi-lingual 32-channel recording software, users can quickly and easily set up an IP surveillance system that's simple to operate but hard to beat.
| Datasheets | Download |
| Model | FD816C-HF2 |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 256MB |
| Image Sensor | 1/2.8" Progressive CMOSE |
| Maximum Resolution | 1920x1080 (2MP) |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Aperture | F1.8 |
| Field of View | 109° (horizontal) 61° (vertical) 132° (diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.07 Lux @ F1.8 (Color) |
| Pan/tilt/zoom Functionalities | ePTZ: 4x digital zoom IE plug-in |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 58.48 dB |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, Smart Stream, 3DNR |
| Audio Capability | Audio input |
| Compression | G.711, G.726 |
| Interface | Buit-in Microphone |
| Effective Range | 5 Meters |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) *It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Video Motion Detection | Five-window video motion detection |
| Alarm Triggers | Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card |
| Connectors | RJ-45 for Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 1 |
| Power Consumption | Max. 3.3W |
| Dimensions | Ø 60 x 115 mm |
| Weight | Net: 138g |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: 0°C ~ 45°C (32°F ~ 113°F) Working Temperature: 0°C ~ 45°C (32°F ~ 113°F) |
| Warranty | 24 months |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (streaming only) Internet Explorer 7/8/9/10/11 |
| Other Players | VLC: 1.1.11 or above QuickTime: 7 or above |
| Others | Quick installation guide |
Recessed-Mount Network Camera
Installation

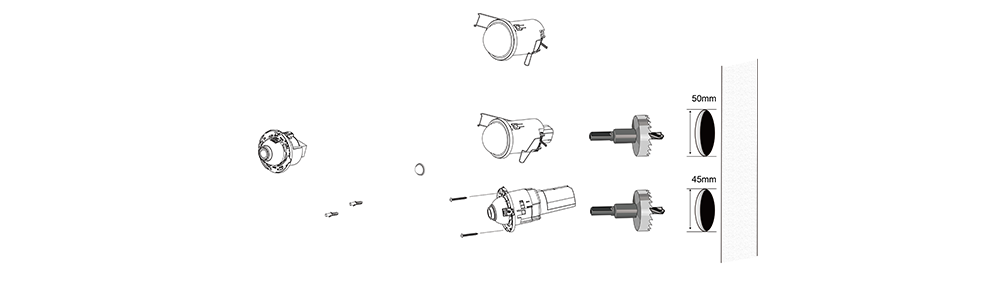

1. Drill a hole on ceiling or wall. The diameters for the installations with or without the retention tube are different.

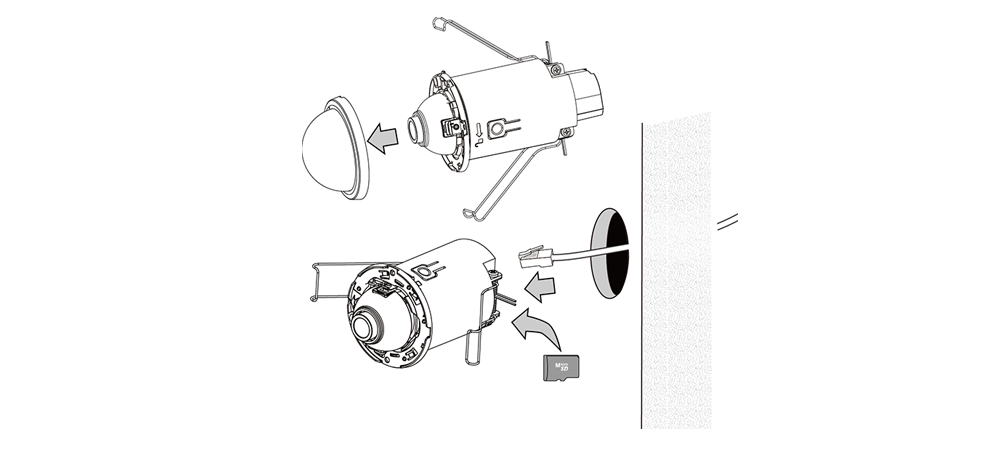

Use the M3 self tapping screws if installed without the retention tube. Note that this type of installation does not apply to hard surfaces, such as a concrete wall.2. Detach the top cover
3. Route an Ethernet cable through the pre-drill hole and then connect it to the camera.

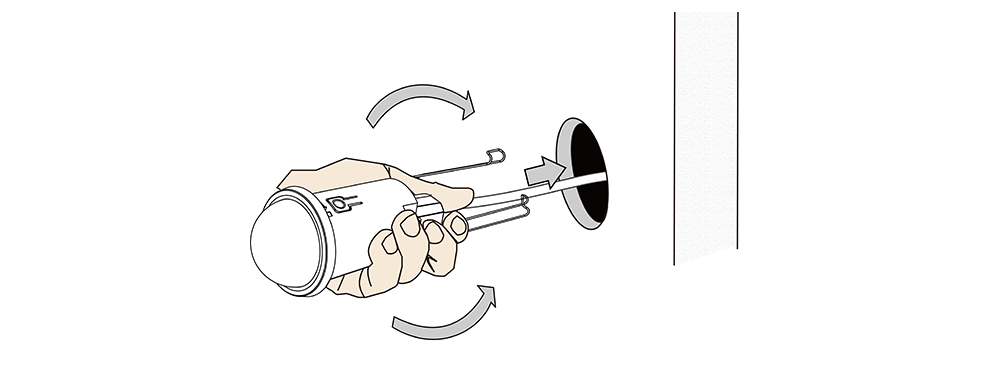

4. Pull the retention clips to the back of the module, and then insert the module into the wall.

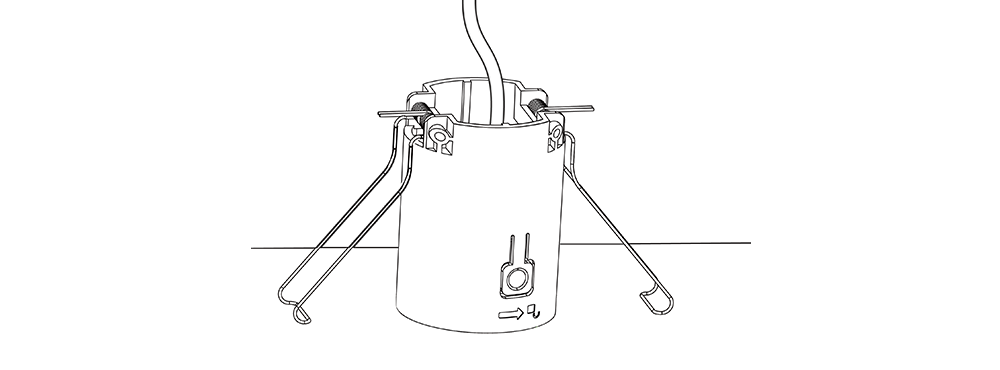

5. The retention clips will hold the module in place.
6. Note that the shooting angle of a fixed lens can only be vertically adjusted. This mark should be on top. There is no need to change the shooting angle for the fisheye lens model.

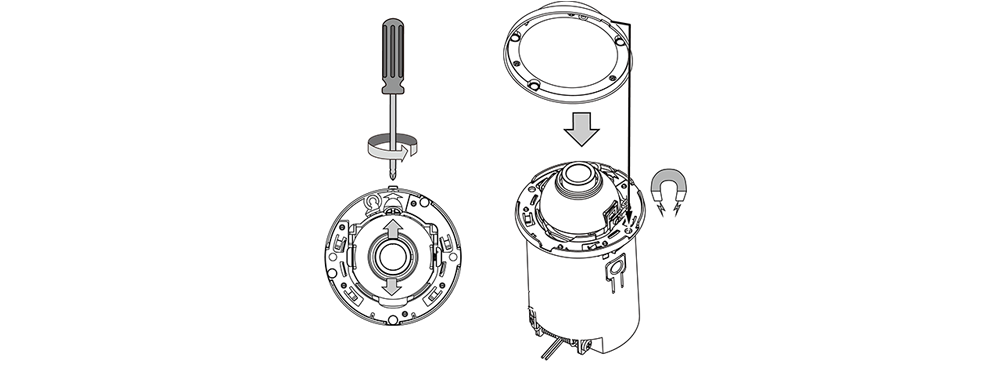

6-1 Use a small-size Phillips screwdriver to change the shooting angle of a fixed focal lens.6-2. Attach the top cover to camera by aligning the notch. The magnets will hold the cover in place.
