Malaysia Leading CCTV IP Network Camera Solution Provider

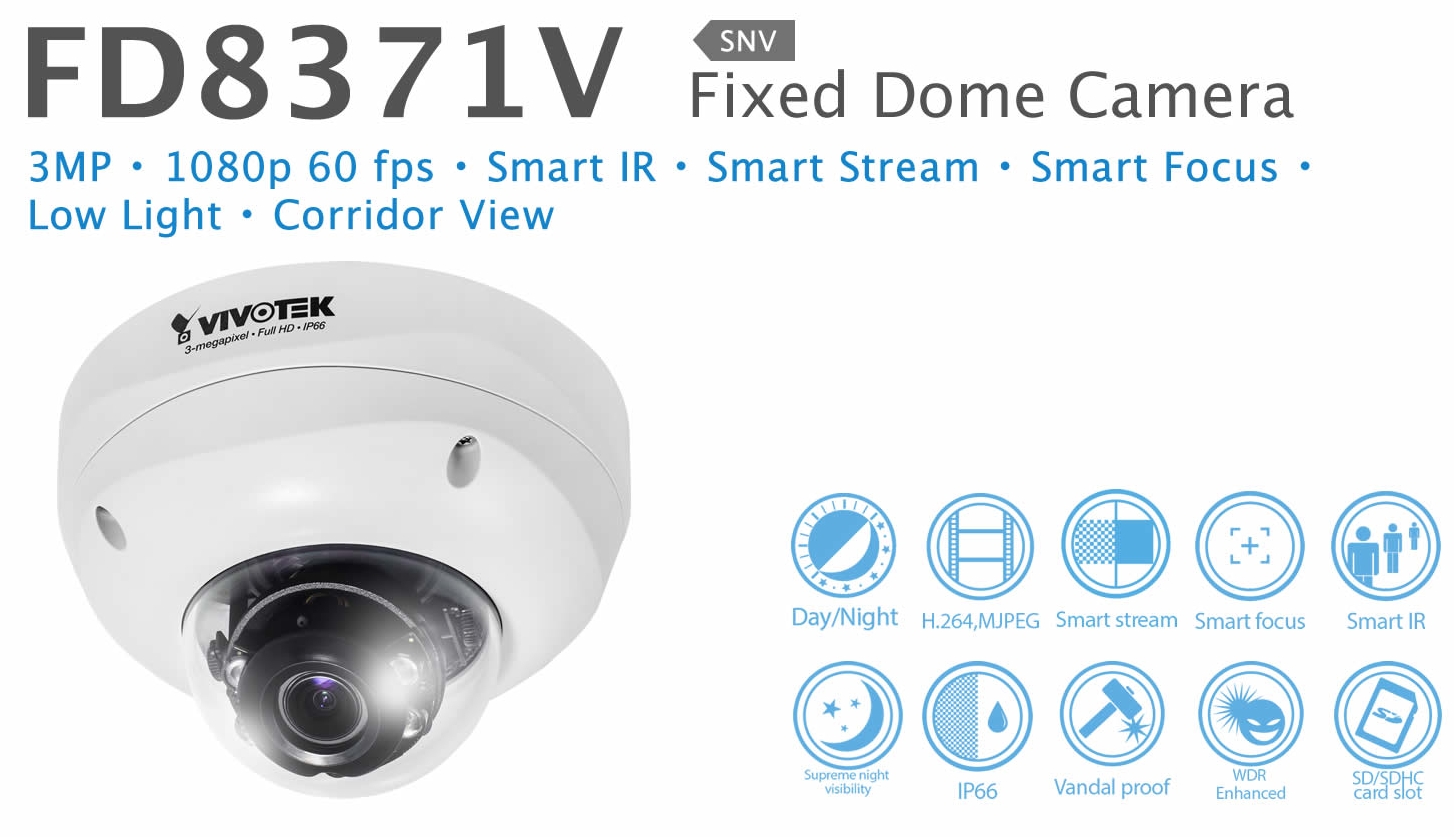

VIVOTEK FD8371V are professional outdoor dome network cameras offering 30 fps @ 3-Megapixel or 60 fps @ 1080p resolution with superb image quality.
As professional day/night cameras, FD8371V feature a Smart IR technology which provides the excellent ability of anti-overexposure and noise reduction to adjust the IR lighting intensity instantly based on environmental lighting change.
Featuring 3D Noise Reduction Technology, it enables the FD8371V to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise. By combining with WDR Enhanced technology, users can identify image details in extremely bright as well as dark environments.
The FD8371V also feature Smart Stream Technology, which can be used to optimize resolution on a desired object or area to maximize bandwidth usage.
The FD8371V come with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the Smart Focus System to make installation and adjustment easier by allowing for remote focus and zoom adjustment.
The IP66-rated housing is designed to help the camera body withstand rain and dust and high pressure water jets from any direction while IK10-rated housing provide the protection against the vandal act and impact. Additionally, the wide temperature range further enhances the FD8371V's performance and reliability in extremely cold or warm weather.
Download PDF
▍KEY FEATURES
• 3-Megapixel CMOS Sensor
• 30 fps @ 2048x1536; 60fps @ 1920x1080
• Motorized, P-iris Lens & DC-iris
• Built-in IR Illuminators, Effective up to 20 Meters
• Smart IR Technology to Avoid Overexposure
• Smart Stream to Optimize Bandwidth Efficiency
• 3D Noise Reduction for Low-light Conditions
• Real-time H.264, MJPEG Compression (Dual Codec)
• Smart Focus System for Remote and Precise Focus Adjustment
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Built-in 802.3af Compliant PoE
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• Supreme Night Visibility
• Video Rotation for Corridor Format
▍SPECIFICATIONS
As professional day/night cameras, FD8371V feature a Smart IR technology which provides the excellent ability of anti-overexposure and noise reduction to adjust the IR lighting intensity instantly based on environmental lighting change.
Featuring 3D Noise Reduction Technology, it enables the FD8371V to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise. By combining with WDR Enhanced technology, users can identify image details in extremely bright as well as dark environments.
The FD8371V also feature Smart Stream Technology, which can be used to optimize resolution on a desired object or area to maximize bandwidth usage.
The FD8371V come with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the Smart Focus System to make installation and adjustment easier by allowing for remote focus and zoom adjustment.
The IP66-rated housing is designed to help the camera body withstand rain and dust and high pressure water jets from any direction while IK10-rated housing provide the protection against the vandal act and impact. Additionally, the wide temperature range further enhances the FD8371V's performance and reliability in extremely cold or warm weather.
Download PDF
▍KEY FEATURES
• 3-Megapixel CMOS Sensor
• 30 fps @ 2048x1536; 60fps @ 1920x1080
• Motorized, P-iris Lens & DC-iris
• Built-in IR Illuminators, Effective up to 20 Meters
• Smart IR Technology to Avoid Overexposure
• Smart Stream to Optimize Bandwidth Efficiency
• 3D Noise Reduction for Low-light Conditions
• Real-time H.264, MJPEG Compression (Dual Codec)
• Smart Focus System for Remote and Precise Focus Adjustment
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Built-in 802.3af Compliant PoE
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• Supreme Night Visibility
• Video Rotation for Corridor Format
▍SPECIFICATIONS
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 512 MB |
| Camera Features | |
| Image sensor | 1/2.8" progressive CMOS |
| Maximum Resolution | 2048x1536 (3MP) |
| Lens Type | Vari-focal, Remote Focus |
| Focal Length | f = 3 ~ 10 mm |
| Aperture | F1.3 ~ F2.5 |
| Auto-iris | P-iris / DC-iris |
| Field of View | 32° ~ 99° (horizontal) 24° ~ 72° (vertical) 40° ~ 128° (diagonal) |
| Shutter Time | 1/5 sec. to 1/8,000 sec. |
| WDR Technology | WDR Enhanced |
| Day & Night | Removable IR-cut filter for day & night function Smart IR Technology to Avoid Overexposure |
| Minimum Illumination | 0.1 Lux @ F1.3 (Color) 0.001 Lux @ F1.3 (B/W) |
| Pan range | 348° |
| Tilt range | 65° |
| Rotation Range | 350° |
| Pan / Tilt / Zoom | ePTZ 48x digital zoom (4x on IE plug-in, 12x built-in) |
| IR Illuminators | Built-in IR illuminators, effective up to 20 meters IR LED*4 Smart IR Technology to Avoid Overexposure |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | In both compression modes: 30 fps at 2048x1536 60 fps at 1920x1080 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | Above 58 dB |
| Dynamic Range | 59 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Image Settings | Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, audio detection,3D noise reduction, smart stream, seamless recording, video rotation |
| Audio | |
| Audio Capability | Audio input /output (full duplex) |
| Compression | AAC, G.711, G.726 |
| Interface | External microphone input and output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org ( Milestone ONVIF 2.1 version, Genetc ONVIF 2.0 version, Genetec extension ) |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
| General | |
| Smart Focus System | Remote focus & focus control |
| Connectors | RJ-45 cable connector for Network/PoE connection Audio input Audio output AC 24V power input/DC 12V power input Digital input*1 Digital output*1 Analog video output |
| LED Indicator | System power and status indicator |
| Power Input | 24V AC 12V DC IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 10.92W (DC 12V) Max. 12.25W (AC 24V) Max. 12.95W (PoE) |
| Dimensions | Ø: 173 mm x 115 mm |
| Weight | Net: 1240 g |
| Casing | Weather-proof IP66-rated housing Vandal-proof IK10-rated housing |
| Safety Certifications | CE C-Tick FCC ( Class A ) LVD KCC VCCI |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F~ 122°F) Working Temperature: -20°C ~ 50°C (-4°F~ 122°F) |
| Warranty | 24 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x, 9.x, 10.x |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
