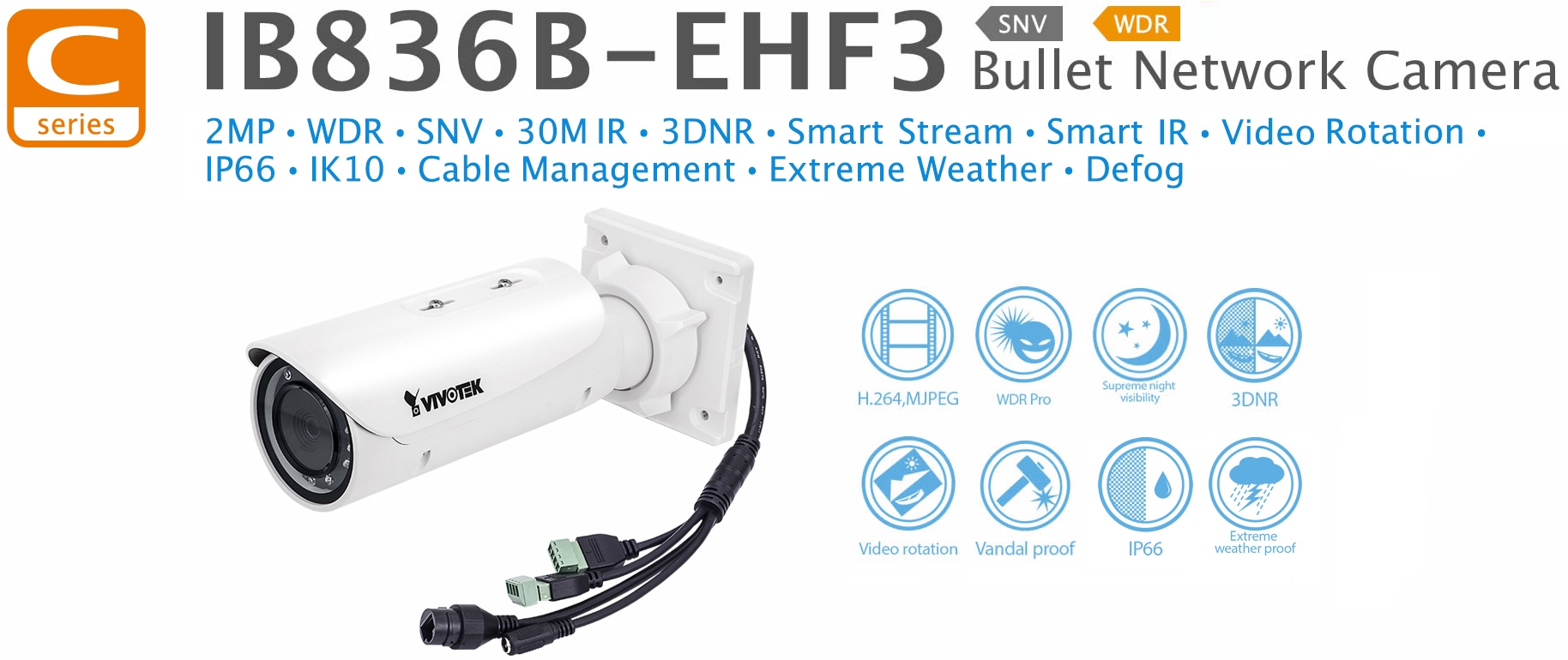

VIVOTEK's IB836B-EHF3 is a stylish, bullet-style network cameras designed for diverse outdoor applications and offering a complete range of options. Equipped with a 2MP Full HD sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB836B-EHF3 is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel with WDR and SNV technology, no matter whether in high contrast or in low light environments.

Increasing its simple operation, the IB836B-EHF3 provides fixed focus without electrical power. To meet the demands of outdoor and harsh applications, VIVOTEK's IB836B-EHF3 is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10-rated housing provides robust protection against acts of vandalism or other impacts.

Moreover, a wide operating temperature range further enhances the IB836B-EHF3 performance and reliability in extremely cold or hot weather, even when using PoE. When choosing VIVOTEK IB836B-H series, customers will be offered four options: the IB836B-HF3, IB836B-EHF3, IB836B-HT, and IB836B-EHT. Different options can be chosen based on the requirements of your application, such as focusing method or operating environment temperature.

Download PDF



▍KEY FEATURES

• 2-Megapixel CMOS Sensor
• 30 fps @ 1920x1080
• 3.6 mm Fixed-focal Lens
• Removable IR-cut Filter for Day & Night Function
• Built-in IR Illuminators, Effective up to 30 Meters
• Smart IR Technology to Avoid Overexposure
• WDR for Unparalleled Visibility in Extremely Bright and Dark Environments
• SNV (Supreme Night Visibility) for Low Light Conditions
• 3D Noise Reduction
• Video Rotation for Corridor View
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Extreme Weather Support with PoE
• VIVOTEK VCA (Video Content Analysis) Support




▍SPECIFICATIONS
Model IB836B-EHF3: Fixed-focal, Extreme Weather
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 1Gb
RAM 2Gb
Camera Features
Image Sensor 1/2.8" Progressive CMOS
Maximum Resolution 1920x1080 (2MP)
Lens Type Fixed-focal
Focal Length f = 3.6 mm
Aperture F2.1
Field of View 83° (Horizontal)
53° (Vertical)
91° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination 0.06 Lux @ F2.1 (Color)
0.001 Lux @ F2.1 (B/W)
Pan/tilt/zoom Functionalities ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators Built-in IR illuminators, effective up to 30 meters
with Smart IR
IR LED*8
On-board Storage Slot type: SD/SDHC/SDXC card slot
Seamless Recording
Video
Compression H.264 & MJPEG
Maximum Frame Rate 30 fps @ 1920x1080
In both compression modes
Maximum Streams 4 simultaneous streams
S/N Ratio Above 58 dB
Dynamic Range 100 dB
Video Streaming Adjustable resolution, quality and bitrate, Smart Stream
Image Settings Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, Video Rotation, Defog
Audio
Audio Capability Two-way audio (full duplex)
Compression G.711, G.726
Interface External microphone input
Audio output
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface 10 Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
Alarm and Event
Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System Fixed Focus
Connectors RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input DC 12V
IEEE 802.3at PoE Class 4
Power Consumption Max. 25 W (Heater on)
Dimensions Ø 88 x 293 mm
Weight Net: 1264 g
Casing Weather-proof IP66-rated housing
Vandal-proof IK10-rated metal housing (Casing Only)
Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick
Operating Temperature Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
Warranty 24 months
