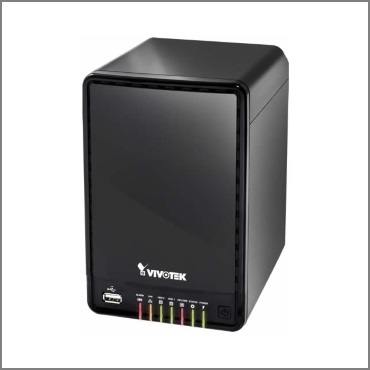

Vivotek ND8321 8-Channel Desktop Standalone NVR
Key features
• 8-CH Live Viewing
• 1-CH Local Playback, 4-CH Remote Synchronous Playback
• Embedded Linux OS
• Easy to Install HDD Design
• 1080P HDMI Local Video Output
• Plug & Play Auto Setup
• Auto Adaptive Stream for Efficient Display
• Support Fisheye Dewarp (1O, 1P, 1R, 1O3R)
• Support Local Rewind
• VIVOTEK Camera Configuration Integrated
Key features
• 8-CH Live Viewing
• 1-CH Local Playback, 4-CH Remote Synchronous Playback
• Embedded Linux OS
• Easy to Install HDD Design
• 1080P HDMI Local Video Output
• Plug & Play Auto Setup
• Auto Adaptive Stream for Efficient Display
• Support Fisheye Dewarp (1O, 1P, 1R, 1O3R)
• Support Local Rewind
• VIVOTEK Camera Configuration Integrated
| Datasheet | Download PDF |
|---|---|
| OS | Embedded Linux |
| CPU | ARM Processor |
| Flash | 256MB |
| RAM | 1 GB |
| Watchdog | Hardware + Software |
| Power Restoration | System restart automatically after Power Recovery |
| HDD Devices | Internal tray x 2 |
| HDD Max. Capacity | 8 TB (4 TB x 2) |
| Disk Management | Create, Format and Remove Disk HDD S.M.A.R.T |
| Video Output | HDMI |
| Resolution | 1920x1080 |
| Graphics Decoder | Hardware decoding |
| Decording Capacity | H.264: 1920x1080 @ 30 fps (1-CH) 1280x720 @ 120 fps (4-CH) 640x480 @ 240 fps (8-CH) |
| Camera Position | Change the viewcell postion |
| USB | Front: 1 (USB 2.0) Back: 1 (USB 2.0) |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter |
| Interface | 1 x 10/100/1000Mbbps |
| Transform Gateway | Supported |
| Power Input | DC 12V 5A |
| Power Consumption (W) | Max. 60 W |
| LED Indicator | Power, Status, LAN, HDD1, HDD2, Alarm, Record |
| Form Factor | Tower |
| Opateration Buttons | Power (Front) / Reset (Back) |
| Dimensions | 121 mm (W) x 179 mm (D) x 186 mm (H) |
| Weight | 0.92 kg |
| Operating Temperature | 0 ~ 40°C |
| Humidity | 0 ~ 95% |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick |
| Warranty | 24 months |
| Operating System | Microsoft Windows OS: XP/Vista/7/8/2008/2012 |
| CPU | Intel Celeon or above |
| Memory | 2 GB or above |
| Ethenet | 10/100Mbps |
| Display Resolution | 1024 x 768 pixels or above |
| Web Browser | Internet Explorer 10 (32 bit) or above |
| Software AP | Installation Wizard 2, ST7501, VAST |
| Mobile APP, Tablet APP | iViewer (iOS) iViewer (Android) |
| CD | User's Manual, Quick Installation Guide (QIG), Installation Wizard 2, ST7501 |
| Others | Power Adapter, Power Cord, Quick installation guide, Warranty card, H.D.D. Screws x 4, H.D.D. Brackets x 2, USB Mouse |
