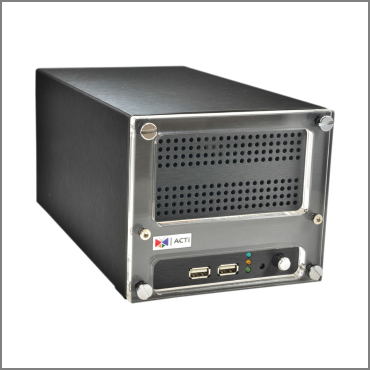

ACTi ENR-120 9-Channel Desktop Standalone NVR
Key features
• 2-bay Desktop
• Manage up to 9 cameras or video encoders
• Recording up to 9 Channels
• Live view local up to 9 Channels, remote up to 9 Channels
• Synchronized playback local up to 9 Channels
• Export video with RAW and AVI formats
• Event trigger, response and notification
• Mobile Client, Web Client
• 9-channel free license included
Key features
• 2-bay Desktop
• Manage up to 9 cameras or video encoders
• Recording up to 9 Channels
• Live view local up to 9 Channels, remote up to 9 Channels
• Synchronized playback local up to 9 Channels
• Export video with RAW and AVI formats
• Event trigger, response and notification
• Mobile Client, Web Client
• 9-channel free license included
| Datasheet | Download PDF |
|---|---|
| Maximum Number of Clients | 1 local, 2 remote |
| Maximum Number of Cameras | 9 |
| Video Compression | H.264 |
| Audio Compression | PCM, G.711 a-law/u-law (Only support local recording and remote live view/playback, not support local live view/playback) |
| Maximum Camera Resolution | Up to 4-Megapixel (local display), Up to 10-Megapixel (remote display) |
| Display Layout Mode | 1, 2, 4, 6, 8, 9 |
| Layout Tour (Auto Patrol) | Automatic switch between different display layouts |
| Digital Zoom | Zoom in digitally by mouse |
| Event status | Display status for network/record/motion/DI/video loss upon every video region |
| Dual Stream Management | Live view of stream 1 or stream 2 of dual stream devices |
| Control | Pan, tilt and zoom controls; speed control |
| Preset Points and Tours | Go/set preset points |
| Number of Preset Points | 32 |
| Joystick | USB based joystick supported |
| Default Protocol | URL command |
| Scheduled Recording | Record video with user defined schedule |
| Event Recording | Record video when the alarm event is triggered, including the pre-event buffered video clip |
| Event Speed-up Recording | Record I frame only in normal status, and record full frames when the alarm event is triggered |
| Manual Recording | Instant recording upon mouse click |
| Recording Frame Rate | Max 270 fps in total; Max 30 fps per camera |
| Maximum Recording Throughput | 36 Mbps |
| Dual Stream Management | Recording of stream 1 or stream 2 of dual stream devices |
| Interface | Serial ATA |
| Maximum HDD Capacity | 4T x 2 |
| HDD Bay | Maximum 2 disks |
| Time Based Video Search | Search video recordings by time, channel or bookmark |
| Event Based Video | Search Search event triggered video recordings, event response video loss |
| Playback Control | Forward and backward playback with speeds 1/2x-1x-32x; pause; stop |
| Synchronized Playback | 9 channels |
| Manual Snapshot | Create snapshot from playback for export |
| Video Cropping | Crop a short video clip from long recording file and save it as an independent file; video clip length:(1-30mins) |
| Video Export | Export video clips in AVI/RAW format |
| Event Trigger | Video motion detection; External device through digital input; Network loss and recovery |
| Event Response | Record video; Play alert beep; Activate external device through digital output; E-mail notification with snapshots; Enlarge; video loss; Go to PTZ preset point |
| Permission Control | Multi-group/users, liveview/playback/setup/remote level permission |
| Operating System | Embedded Linux |
| System Status Monitor | Real time status reports on remote browser |
| Language | Multi-language support |
| PC Web Browser | Microsoft Internet Explorer 9, 10 or 11 |
| Remote Client PC System Requirement | Intel Core 2 Quad 2.66 GHz, 32/64-bit, 4GB RAM |
| Mobile Client Program Mobile device application (ACTi Mobile Client) supports live view, PTZ control, event or time based search and playback | Supported devices: iPhone, iPad, iTouch and Android device |
| Dimensions (W x H x D) | 135 mm x 121 mm x 251 mm ( 5.3" x 4.8" x 9.9") |
| Weight | 1.32 kg |
| Operating Temperature | 0°C~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% ~ 85% RH |
| Power Source / Consumption | DC 12V/ 22W |
| Bundled Accessories | Warranty Card / QIG / Power Adapter (100~240V) / Mouse / Universal Converter/HDD screw x 8 |
| Approvals | ENR-120: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); Adapter: CE, FCC, UL, PSE, Efficiency Level V |
| USB | USB 2.0, 2 ports (USB 1.1 not supported) |
| Ethernet Port | LAN1: 1000Base-T ; LAN2: 10/100Base-T (WAN port) |
| Display Port | HDMI |
| Unified Solution | Fully compatible with ACTi cameras, encoders and CMS V2.0 |
| Open Platform Solution | Support ONVIF compliant devices |
