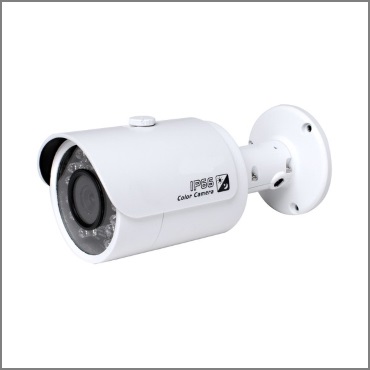

Tander (OEM Dahua) IPC-HFW1100S 720P Bullet IP Camera
Key features
• 1/4” 1Megapixel progressive scan CMOS
• H.264&MJPEG dual-stream encoding
• Max 25/30fps@720P(1280×720)
• DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 3.6mm fixed lens
• Max. IR LEDs Length 30m
• IP66, PoE
Key features
• 1/4” 1Megapixel progressive scan CMOS
• H.264&MJPEG dual-stream encoding
• Max 25/30fps@720P(1280×720)
• DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 3.6mm fixed lens
• Max. IR LEDs Length 30m
• IP66, PoE
| Datasheet | Download PDF |
|---|---|
| Image Sensor | 1/4” 1Megapixel progressive scan CMOS |
| Effective Pixels | 1280(H)x720(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3(4)~1/10000 |
| Min. Illumination | 0. 1Lux/F1.2 (Color), 0.01Lux/F1.2(B/W);0Lux/F1.2(IR on) |
| S/N Ratio | More than 50dB |
| Video Output | N/A |
| Max. IR LEDs Length | 30m |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC/ HLC/ DWDR |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D |
| Privacy Masking | Up to 4 areas |
| Focal Length | 3.6mm |
| Max Aperture | F1.8(F2.0/F1.8) |
| Focus Control | Manual |
| Angle of View | H: 63.5°/40° |
| Lens Type | Fixed lens |
| Mount Type | Build-in Type |
| Compression | H.264 / MJPEG |
| Resolution | 720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240) |
| Frame Rate | Main Stream 720P(1 ~ 25/30fps) Sub Stream D1/CIF(1 ~ 25/30fps) |
| Bit Rate | H.264: 16K ~ 8192Kbps |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| ONVIF | ONVIF Profile S |
| Max. User Access | 10 users |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | Max 6.5W |
| Working Environment | -30°C~+60°C, Less than 95%RH |
| Ingress Protection | IP66 |
| Dimensions | F70mm×66mm×160mm |
| Weight | 0.5Kg |
Specification
