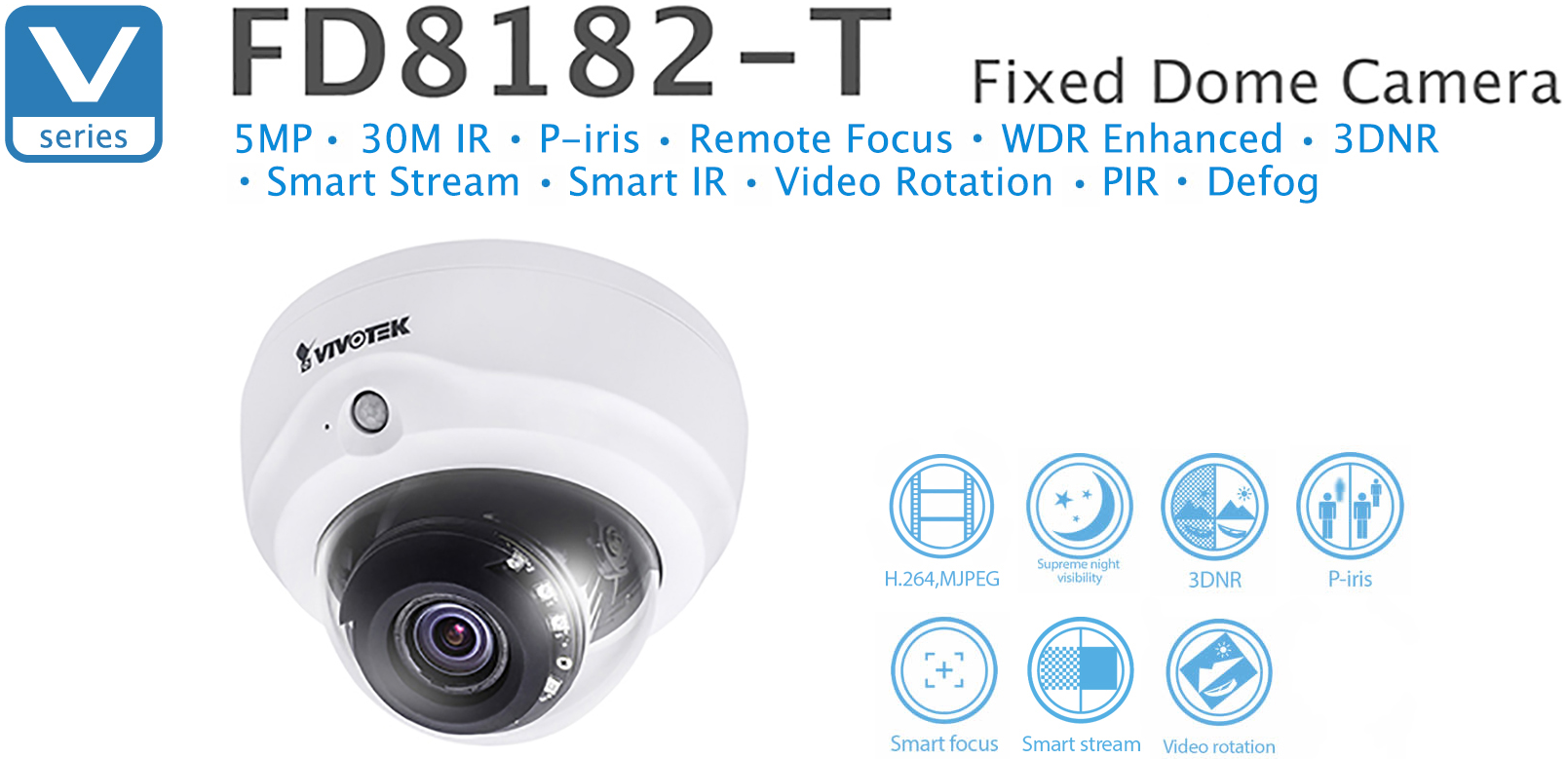

VIVOTEK’s FD8182-T is an economic professional indoor fixed dome network camera in VIVTOTEK’s 5MP V-Pro Lite series. Design to provide higher resolution and sharper image with more detail, the FD8182-T offers up to 15 fps at 5-Megapixel or 30 fps at 1080p resolution. With powerful 3D Noise Reduction technology and Smart Stream technology, the FD8182-T can also optimize resolution for a desired object or area to maximize efficiency of bandwidth usage.

Increasing its flexibility, VIVOTEK’s FD8182-T provides remote focus with built-in stepping motors and P-iris to provide precise adjustment remotely. To meet the demands of indoor applications, VIVOTEK’s FD8182-T is also equipped with a PIR sensor to help detect unexpected events and provide the appropriate response in real time.


With the highly flexible VADP (VIVOTEK Application Development Platform), users can extend the features of this FD8182 series by adding third-party applications for the FD8182-F2 and the FD8182-T. Thus, the FD8182 series is not only equipped with multiple focusing methods, but is also highly flexible and able to be expanded to meet the requirements of a wide variety of indoor applications.

Download PDF



▍KEY FEATURES

• 5-Megapixel CMOS Sensor
• 15 fps @ 2560x1920
• 3 ~ 9 mm, Remote Focus, P-iris Lens
• Built-in IR Illuminators, Effective up to 30 Meters
• WDR Enhanced for Unparalleled Visibility in Bright and Dark Environments
• Smart Stream to Optimize Bandwidth Efficiency
• 3D Noise Reduction
• Two-way Audio
• PIR
• Video Rotation for Corridor View
• Support Installation with AM-712 Indoor Conduit Box
• VIVOTEK VCA (Video Content Analysis) Support







▍SPECIFICATIONS
Model FD8182-T: Vari-focal, P-iris, Remote Focus
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 1Gb
RAM 4Gb
Camera Features
Image Sensor 1/3.2" Progressive CMOS
Maximum Resolution 2560x1920 (5MP)
Lens Type Vari-focal
Focal Length f = 3 ~ 9 mm
Aperture F1.2 ~ F2.3
Auto-iris P-iris
Field of View 35° ~ 78° (Horizontal)
27° ~ 54° (Vertical)
44° ~ 101° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Enhanced
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination 0.04 Lux @ F1.2 (Color)
0.001 Lux @ F1.2 (B/W)
Pan/tilt/zoom Functionalities ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators Built-in IR illuminators, effective up to 30 meters
with Smart IR
IR LED*8
On-board Storage Slot type: Micro SD/SDHC/SDXC card slot
Seamless Recording
Video
Compression H.264 & MJPEG
Maximum Frame Rate 15 fps @ 2560x1920
15 fps @ 2048x1536
30 fps @ 1920x1080
In both compression modes
Maximum Streams 4 simultaneous streams
S/N Ratio 67 dB
Dynamic Range 70 dB
Video Streaming Adjustable resolution, quality and bitrate; Smart Stream
Image Settings Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, 3D noise reduction, video rotation, defog
Audio
Audio Capability Two-way Audio (full duplex)
Compression G.711, G.726
Interface Built-in Microphone
External line input
External line output
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface 10 Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
Alarm and Event
Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System Remote Focus
Connectors RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input DC 12V
IEEE 802.3af/at PoE Class 0
Power Consumption Max. 9.5 W
Dimensions Ø 138 x 103 mm
Weight 541 g
Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature Starting Temperature: 0°C ~ 50°C (32°F~ 122°F)
Working Temperature: -10°C ~ 50°C (14°F~ 122°F)
Warranty 36 months
System Requirements
Operating System Microsoft Windows 7/8/Vista/XP/2000
Web Browser Mozilla Firefox 7~43 (streaming only)
Internet Explorer 7/8/9/10/11
Other Players VLC: 1.1.11 or above
Quicktime: 7 or above
