Malaysia Leading CCTV IP Network Camera Solution Provider

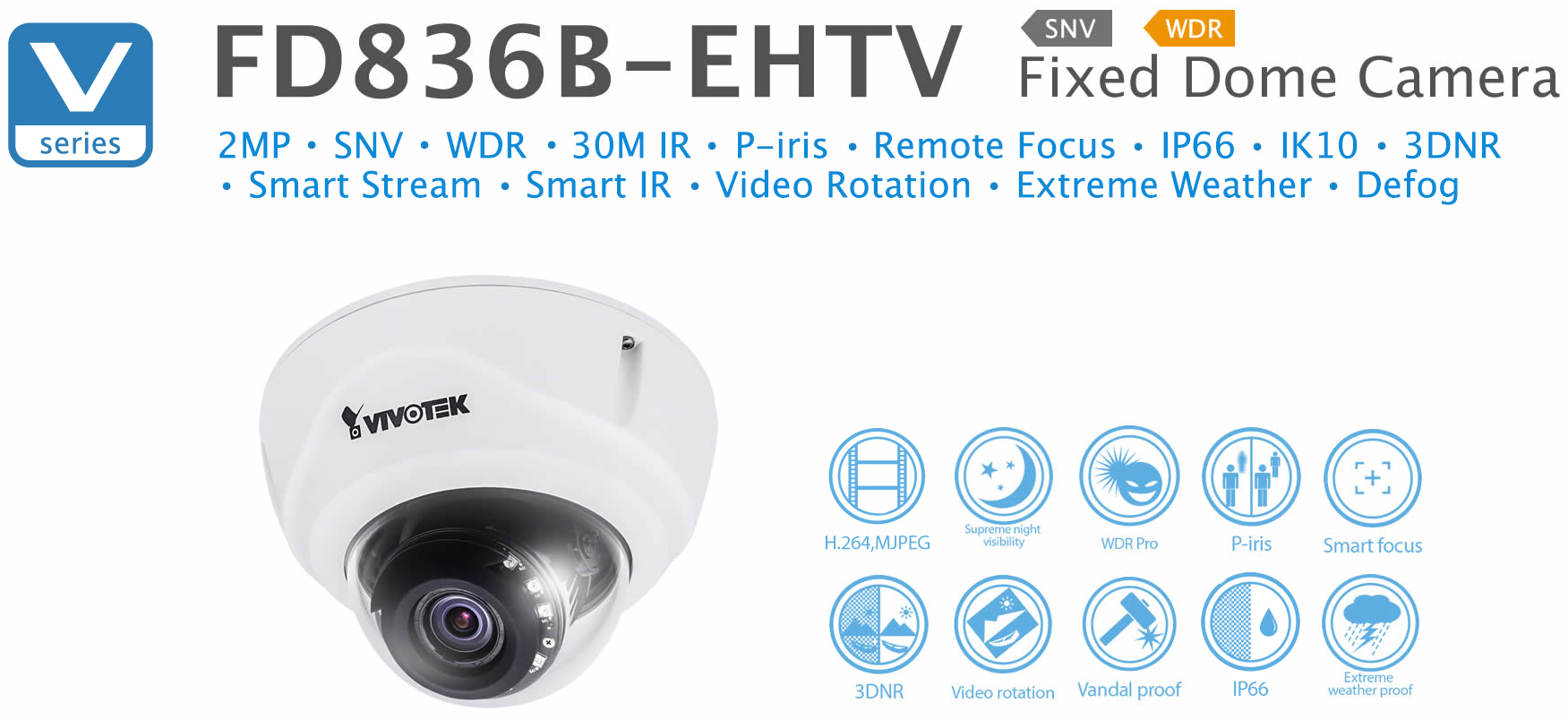

VIVOTEK's FD836B-EHTV is a robust, dome-style network cameras designed for diverse outdoor applications. Equipped with a Full HD sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD836B-EHTV is an all-in-one outdoor camera capable of capturing high quality and high resolution video at up to 2 Megapixels whether in high contrast or low light with WDR and SNV technology.
Further increasing its flexibility, VIVOTEK's FD836B-EHTV provides remote focus with built-in stepping motors and P-iris to provide precise adjustment remotely. To meet the demands of any harsh outdoor application, the camera is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10-rated housing provides robust protection against acts of vandalism or other impacts. Moreover, featuring with a wide operating temperature range enhances the FD836B-EHTV's performance and reliability in extremely cold or hot weather, even when using PoE.
When choosing VIVOTEK FD836B-HV series, customers will be offered four options: the FD836B-EHTV, FD836B-HTV, FD836B-EHVF2, and FD836B-HVF2. Different options can be chosen based on the requirements of your application, such as the need for a specific focusing method or operating environment temperature.
Download PDF
▍KEY FEATURES
• 2-Megapixel CMOS Sensor
• 30 fps @ 1920x1080
• 2.8 ~ 12 mm, Remote Focus, P-iris Lens
• Built-in IR Illuminators, Effective up to 30 Meters
• WDR for Unparalleled Visibility in Extremely Bright and Dark Environments
• SNV (Supreme Night Visibility) for Low-light Conditions
• 3D Noise Reduction
• Two-way Audio
• Video Rotation for Corridor View
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Support Installation with AM-713 Outdoor Conduit Box
• Extreme Weather Support with PoE
• VIVOTEK VCA (Video Content Analysis) Support
▍SPECIFICATIONS
Further increasing its flexibility, VIVOTEK's FD836B-EHTV provides remote focus with built-in stepping motors and P-iris to provide precise adjustment remotely. To meet the demands of any harsh outdoor application, the camera is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10-rated housing provides robust protection against acts of vandalism or other impacts. Moreover, featuring with a wide operating temperature range enhances the FD836B-EHTV's performance and reliability in extremely cold or hot weather, even when using PoE.
When choosing VIVOTEK FD836B-HV series, customers will be offered four options: the FD836B-EHTV, FD836B-HTV, FD836B-EHVF2, and FD836B-HVF2. Different options can be chosen based on the requirements of your application, such as the need for a specific focusing method or operating environment temperature.
Download PDF
▍KEY FEATURES
• 2-Megapixel CMOS Sensor
• 30 fps @ 1920x1080
• 2.8 ~ 12 mm, Remote Focus, P-iris Lens
• Built-in IR Illuminators, Effective up to 30 Meters
• WDR for Unparalleled Visibility in Extremely Bright and Dark Environments
• SNV (Supreme Night Visibility) for Low-light Conditions
• 3D Noise Reduction
• Two-way Audio
• Video Rotation for Corridor View
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Support Installation with AM-713 Outdoor Conduit Box
• Extreme Weather Support with PoE
• VIVOTEK VCA (Video Content Analysis) Support
▍SPECIFICATIONS
| Model | FD836B-EHTV: Vari-focal, P-iris, Remote Focus, Extreme Weather |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 1Gb |
| RAM | 2Gb |
| Camera Features | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Maximum Resolution | 1920x1080 (2MP) |
| Lens Type | Vari-focal |
| Focal Length | f = 2.8 ~ 12 mm |
| Aperture | F1.8 ~ F2.85 |
| Auto-iris | P-iris |
| Field of View | 42° ~ 105° (Horizontal) 24° ~ 57° (Vertical) 49° ~ 131° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.03 Lux @ F1.8 (Color) 0.001 Lux @ F1.8 (B/W) |
| Pan/tilt/zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR IR LED*8 |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 In both compression modes |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 58dB |
| Dynamic Range | 100dB |
| Video Streaming | Adjustable resolution, quality and bitrate, Smart Stream |
| Image Settings | Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, Video Rotation, Defog |
| Audio | |
| Audio Capability | Two-way audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card |
| General | |
| Smart Focus System | Remote Focus |
| Connectors | RJ-45 cable connector for Network/PoE connection Audio input Audio output DC 12V power input Digital input*1 Digital output*1 |
| LED Indicator | System power and status indicator |
| Power Input | DC 12V IEEE 802.3at PoE Class 4 |
| Power Consumption | Max. 25 W (Heater on) |
| Dimensions | Ø 155 x 103 mm |
| Weight | 920 g |
| Casing | Weather-proof IP66-rated housing Vandal-proof IK10-rated metal housing |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL |
| Operating Temperature | Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F) Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F) |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 7/8/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10/11 |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
