Malaysia Leading CCTV IP Network Camera Solution Provider

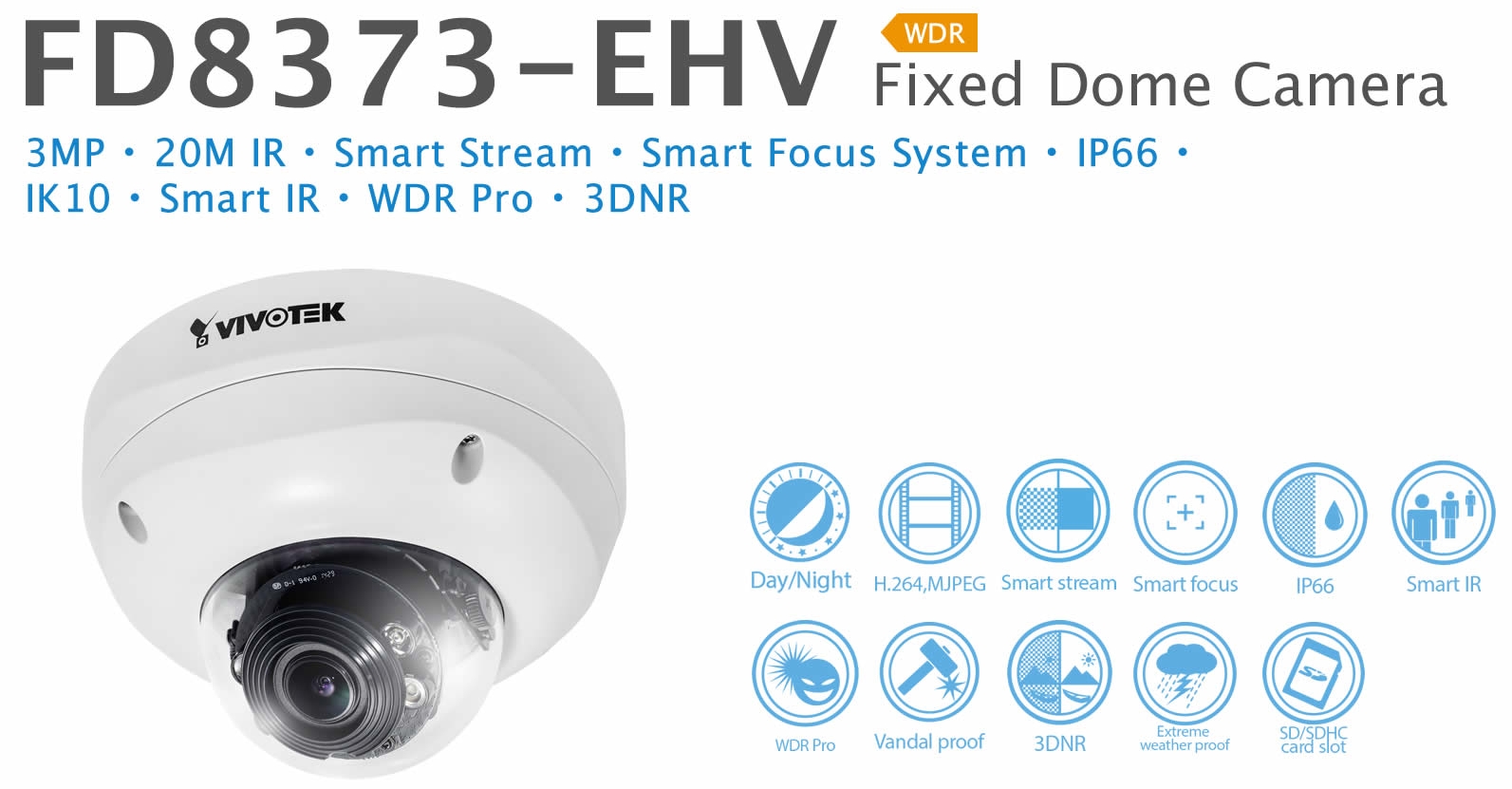

VIVOTEK's FD8373-EHV network camera features a 3-Megapixel WDR CMOS sensor to cope with challenging lighting conditions. The WDR Pro feature allows the camera to capture both the dark and bright areas of an image and combine the differences to generate a highly realistic representation of the original scene. This feature enables the camera to provide video quality very close to the capabilities of the human eye. The FD8373-EHV can be deployed widely in high contrast outdoor environments such as parking areas and streets. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field.
The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures smooth operation even under a multitude of harsh weather conditions while its IK10-rated housing can provide the protection against the vandal act and impact. Additionally, the wide temperature range further enhances the FD8373-EHV's performance and reliability in extremely cold environments.
Download PDF
▍KEY FEATURES
• 3-Megapixel CMOS Sensor
• 20 fps @ 2048x1536
• Motorized, P-iris Lens
• Smart IR Technology to Avoid Overexposure
• Built-in IR Illuminators, Effective up to 20 Meters
• Smart Stream
• 3D Noise Reduction
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
• Smart Focus System for Remote and Precise Focus Adjustment
• Two-way Audio
• Weather-proof IP66-rated Housing
• Vandal-proof IK10-rated Housing
▍SPECIFICATIONS
The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures smooth operation even under a multitude of harsh weather conditions while its IK10-rated housing can provide the protection against the vandal act and impact. Additionally, the wide temperature range further enhances the FD8373-EHV's performance and reliability in extremely cold environments.
Download PDF
▍KEY FEATURES
• 3-Megapixel CMOS Sensor
• 20 fps @ 2048x1536
• Motorized, P-iris Lens
• Smart IR Technology to Avoid Overexposure
• Built-in IR Illuminators, Effective up to 20 Meters
• Smart Stream
• 3D Noise Reduction
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
• Smart Focus System for Remote and Precise Focus Adjustment
• Two-way Audio
• Weather-proof IP66-rated Housing
• Vandal-proof IK10-rated Housing
▍SPECIFICATIONS
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/3" progressive CMOS |
| Maximum Resolution | 2048x1536 (3MP) |
| Lens Type | Vari-focal, Remote Focus |
| Focal Length | f = 2.8 ~ 12 mm |
| Aperture | F1.8 ~ F2.85 |
| Auto-iris | P-iris |
| Field of View | 29.7° ~ 82.6° (horizontal) 22.4° ~ 61.9° (vertical) 37.6° ~ 108.7° (diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day & Night | Removable IR-cut filter for day & night function Smart IR Technology to Avoid Overexposure |
| Minimum Illumination | 0.33 Lux @ F1.8 (Color) 0.001 Lux @ F1.8 (B/W) |
| Pan / Tilt / Zoom | ePTZ 48x digital zoom (4x on IE plug-in, 12x built-in) |
| IR Illuminators | Built-in IR illuminators, effective up to 20 meters IR LED*4 Smart IR Technology to Avoid Overexposure |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | In both compression modes: 20 fps at 2048x1536 30 fps at 1920x1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | Above 62 dB |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Image Settings | Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings 3D Noise Reduction, Smart Stream Seamless recording, new text on video, SD recording 1HR |
| Audio | |
| Audio Capability | Audio input /output (full duplex) |
| Compression | AAC, G.711, G.726 |
| Interface | External microphone input and Output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
| General | |
| Smart Focus System | Remote focus |
| Connectors | RJ-45 for Network / PoE connection Audio input Audio output AC 24V power input DC 12V power input Digital iutput*1 Digital output*1 |
| LED Indicator | System power and status indicator |
| Power Input | 24V AC 12V DC IEEE 802.3af PoE Class 3 |
| Power Consumption | DC: Max.25.2 W (Heater on), 11 W (Heater off) AC: Max. 26.25 W (Heater on), 12.5 W (Heater off) PoE: Max. 11 W |
| Dimensions | Ø: 173 mm x 115 mm |
| Weight | Net: 1240 g |
| Casing | Weather-proof IP66-rated housing Vandal-proof IK10-rated metal housing |
| Safety Certifications | CE, C-Tick, FCC Class A, LVD, UL, VCCI |
| Operating Temperature | Starting Temperature: -40°C ~ 50°C ( PoE: -10°C ~ 50°C ) Working Temperature: -50°C ~ 50°C ( PoE: -20°C ~ 50°C ) |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x, 9.x, 10.x |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
