Malaysia Leading CCTV IP Network Camera Solution Provider

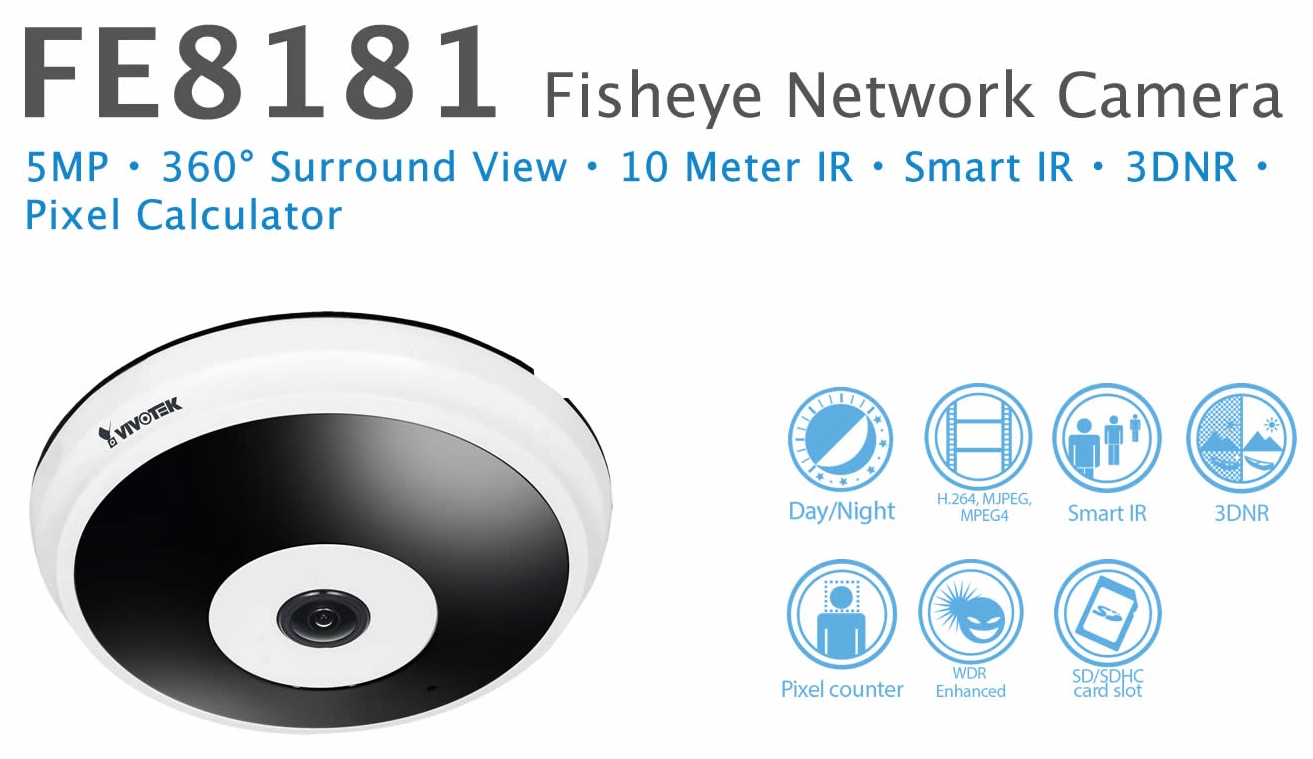

VIVOTEK FE8181 is the latest fisheye fixed dome network camera from VIVOTEK, featuring a detailed 5-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more.
The FE8181, true day/night camera, features a removable IR-cut filter, maintaining clear images 24 hours a day, with built-in IR LEDs enabling the camera to provide uniformly 360° surround illumination for clear viewing up to 10 meters, even in completely dark environments.
Download PDF
▍KEY FEATURES
• 5-Megapixel CMOS Sensor
• 30fps @ 1080p Full HD
• f 1.5 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
• Removable IR-cut Filter for Day & Night Function
• Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
• ePTZ for Data Efficiency
• Built-in 802.3at Compliant PoE
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• Pixel Calculator for Image Clarity Measurement
• Support Local Dewarping
▍SPECIFICATIONS
The FE8181, true day/night camera, features a removable IR-cut filter, maintaining clear images 24 hours a day, with built-in IR LEDs enabling the camera to provide uniformly 360° surround illumination for clear viewing up to 10 meters, even in completely dark environments.
Download PDF
▍KEY FEATURES
• 5-Megapixel CMOS Sensor
• 30fps @ 1080p Full HD
• f 1.5 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
• Removable IR-cut Filter for Day & Night Function
• Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
• ePTZ for Data Efficiency
• Built-in 802.3at Compliant PoE
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• Pixel Calculator for Image Clarity Measurement
• Support Local Dewarping
▍SPECIFICATIONS
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/2.5" Progressive CMOS sensor in 2560 x 1920 resolution |
| Maximum Resolution | 1920x1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.5 mm |
| Aperture | F2.8 |
| Field of View | 180° (Horizontal) 180° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day & Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.6 Lux @ F2.8 ( Color ) |
| Preset Locations | 20 |
| Pan / Tilt / Zoom | ePTZ 12x digital zoom (12x on IE plug-in) |
| IR Illuminators | Built-in IR illuminators, effective up to 10 meters IR LED*6 |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MPEG-4 & MJPEG |
| Maximum Frame Rate | In both compression modes: 15 fps @ 1920x1920 30 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | Above 50 dB |
| Dynamic Range | Above 60 dB |
| Video Streaming | Adjustable resolution, quality and bitrate Configurable video cropping for bandwidth saving |
| Image Settings | Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, pixel calculator, 3D-Noise reduction |
| Audio | |
| Audio Capability | Audio input / output ( full duplex ) |
| Compression | AAC, G.711, G.726 |
| Interface | Built-in microphone External microphone input External line output |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection Audio input Audio output DC 12V power input Digital input*1 Digital output*1 |
| LED Indicator | System power and status indicator |
| Power Input | 12V DC IEEE 802.3at PoE Class 4 |
| Power Consumption | Max. 22 W ( DC 12V ) Max. 23 W ( PoE+ ) |
| Dimensions | Ø: 160 mm x 39 mm |
| Weight | Net: 589 g |
| Safety Certifications | CE, C-Tick, FCC Class B, LVD, UL, VCCI |
| Operating Temperature | Starting Temperature: -25°C ~ 50°C ( -13°F ~ 122°F ) Working Temperature: -40°C ~ 50°C ( -40°F ~ 122°F ) |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x, 9.x, 10.x |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
