Malaysia Leading CCTV IP Network Camera Solution Provider

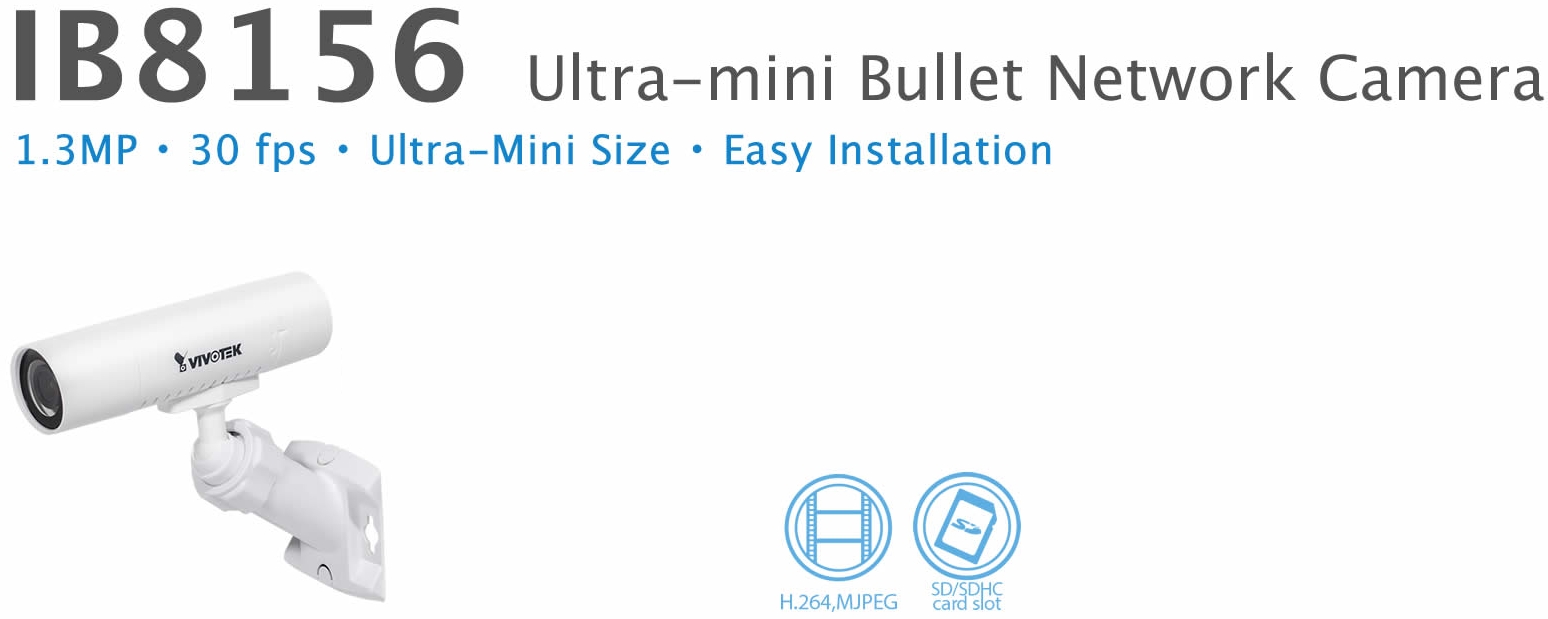

VIVOTEK IB8156 is an ultra-mini bullet network camera, specially designed for indoor applications in which camera appearance is cared, such as luxury stores, antique stores and cloth shops.
The IB8156 is equipped with a 1.3-megapixel sensor and the ability to output 30 frames per second in H.264 compression. It includes multiple streams with different settings and applications, such as recording or live viewing.
Users can also benefit from simple installation with the compact housing and standard PoE power input design, as well as a MicroSD card slot for local storage.
Download PDF
▍KEY FEATURES
• 1.3-Megapixel CMOS Sensor
• 30 fps @ 1280x1024
• Real-time H.264, MJPEG Compression (Dual Codec)
• Built-in IEEE 802.3af Compliant PoE
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• Ultra-mini Size Design
• Flexible Installation Options: Ceiling, Wall and G-bracket Mount
• Easy Installation
▍SPECIFICATIONS
The IB8156 is equipped with a 1.3-megapixel sensor and the ability to output 30 frames per second in H.264 compression. It includes multiple streams with different settings and applications, such as recording or live viewing.
Users can also benefit from simple installation with the compact housing and standard PoE power input design, as well as a MicroSD card slot for local storage.
Download PDF
▍KEY FEATURES
• 1.3-Megapixel CMOS Sensor
• 30 fps @ 1280x1024
• Real-time H.264, MJPEG Compression (Dual Codec)
• Built-in IEEE 802.3af Compliant PoE
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• Ultra-mini Size Design
• Flexible Installation Options: Ceiling, Wall and G-bracket Mount
• Easy Installation
▍SPECIFICATIONS
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 16 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/3" Progressive CMOS |
| Maximum Resolution | 1280x1024 (1.3MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 3.6 mm |
| Aperture | F1.6 |
| Field of View | 77° (horizontal) 61° (vertical) 101° (diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| Minimum Illumination | 0.2 Lux @ F1.8 |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | In both compression modes: 30 fps @ 1280x1024 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 53 dB |
| Video Streaming | Adjustable resolution, quality and bitrate Configurable video cropping for bandwidth saving |
| Image Settings | Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 1 |
| Power Consumption | Max. 2.3 W |
| Dimensions | Ø: 32 mm x 117 mm |
| Weight | Net: 83 g (Body Only) 108 g (IB8156-C) |
| Safety Certifications | CE C-Tick FCC ( Class B ) LVD VCCI |
| Operating Temperature | Starting Temperature: -10°C ~ 40°C (14°F~ 104°F) Working Temperature: -20°C ~ 40°C (-4°F~ 104°F) |
| Warranty | 24 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x, 9.x, 10.x |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
