Malaysia Leading CCTV IP Network Camera Solution Provider

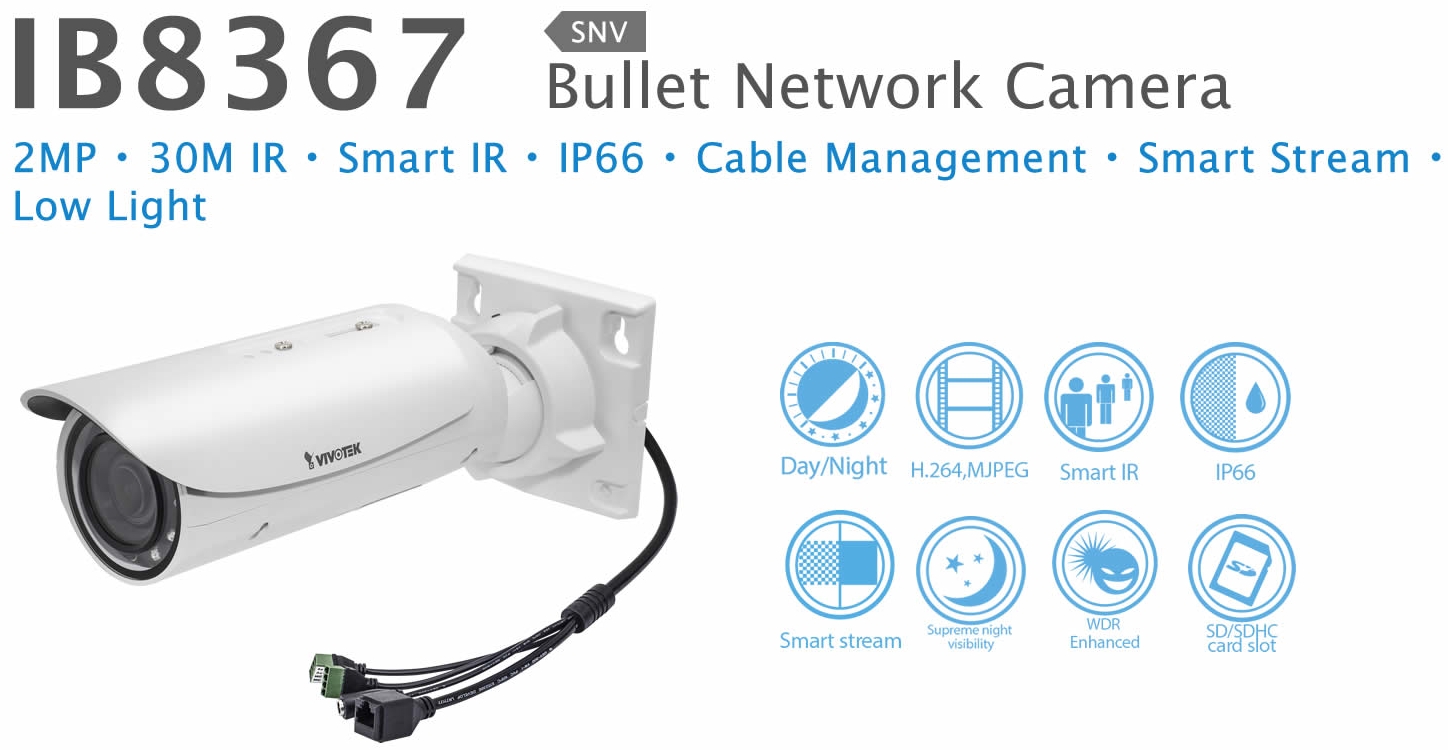

VIVOTEK IB8367 network camera is stylish, bullet-style network cameras designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB8367 series are all-in-one outdoor cameras capable of capturing high quality and high resolution, especially in low light environment. In addition to applying VIVOTEK's notable bandwidth solution in Smart Stream and 3DNR.
Incorporating a number of advanced features standard for VIVOTEK cameras, the IB8367 series are the ideal solutions for your outdoor surveillance needs.
Download PDF
▍KEY FEATURES
• 2-Megapixel CMOS Sensor
• 30 fps @ 1920x1080
• 2.8 ~ 12 mm Vari-focal, P-iris Lens
• Removable IR-cut Filter for Day & Night Function
• Built-in IR Illuminators, Effective up to 30 Meters
• Real-time H.264, and MJPEG Compression
• Two-way Audio
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
• Weather-proof IP66-rated Housing
• 3D Noise Reduction
• Smart IR Technology to Avoid Overexposure
• SNV (Supreme Night Visibility)
▍SPECIFICATIONS
Incorporating a number of advanced features standard for VIVOTEK cameras, the IB8367 series are the ideal solutions for your outdoor surveillance needs.
Download PDF
▍KEY FEATURES
• 2-Megapixel CMOS Sensor
• 30 fps @ 1920x1080
• 2.8 ~ 12 mm Vari-focal, P-iris Lens
• Removable IR-cut Filter for Day & Night Function
• Built-in IR Illuminators, Effective up to 30 Meters
• Real-time H.264, and MJPEG Compression
• Two-way Audio
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
• Weather-proof IP66-rated Housing
• 3D Noise Reduction
• Smart IR Technology to Avoid Overexposure
• SNV (Supreme Night Visibility)
▍SPECIFICATIONS
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/2.8" Progressive CMOS |
| Maximum Resolution | 1920x1080 (2MP) |
| Lens Type | Vari-focal |
| Focal Length | f = 2.8 ~ 12 mm |
| Aperture | F1.8 ~ F2.85 |
| Auto-iris | P-Iris |
| Field of View | 30° ~ 98° (Horizontal) 21° ~ 54° (Vertical) 40° ~ 121° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day & Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.06 Lux @ F1.8 (Color) 0.001 Lux @ F1.8 (B/W) |
| Pan / Tilt / Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR IR LED*6 |
| On-board Storage | SD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | In both compression modes: 30 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | Above 58 dB |
| Dynamic Range | 60.37 dB |
| Video Streaming | Adjustable resolution, quality and bitrate Configurable video cropping for bandwidth saving |
| Image Settings | Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction |
| Audio | |
| Audio Capability | Audio input /output (full duplex) |
| Compression | G.711, G.726 |
| Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP, NAS server and SD card |
| General | |
| Smart Focus System | Manual focus |
| Connectors | RJ-45 cable connector for Network/PoE connection Audio input Audio output DC 12V power input Digital input*1 Digital output*1 |
| LED Indicator | System power and status indicator |
| Power Input | DC12V IEEE 802.3af PoE Class 3 |
| Power Consumption | Max: 8.6 W (DC12V) Max: 9.7 W (PoE) |
| Dimensions | Ø: 82 x 283 mm |
| Weight | Net: 920 g |
| Casing | Weather-proof IP66-rated housing |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F~122°F) Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x, 9.x, 10.x |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
