Malaysia Leading CCTV IP Network Camera Solution Provider

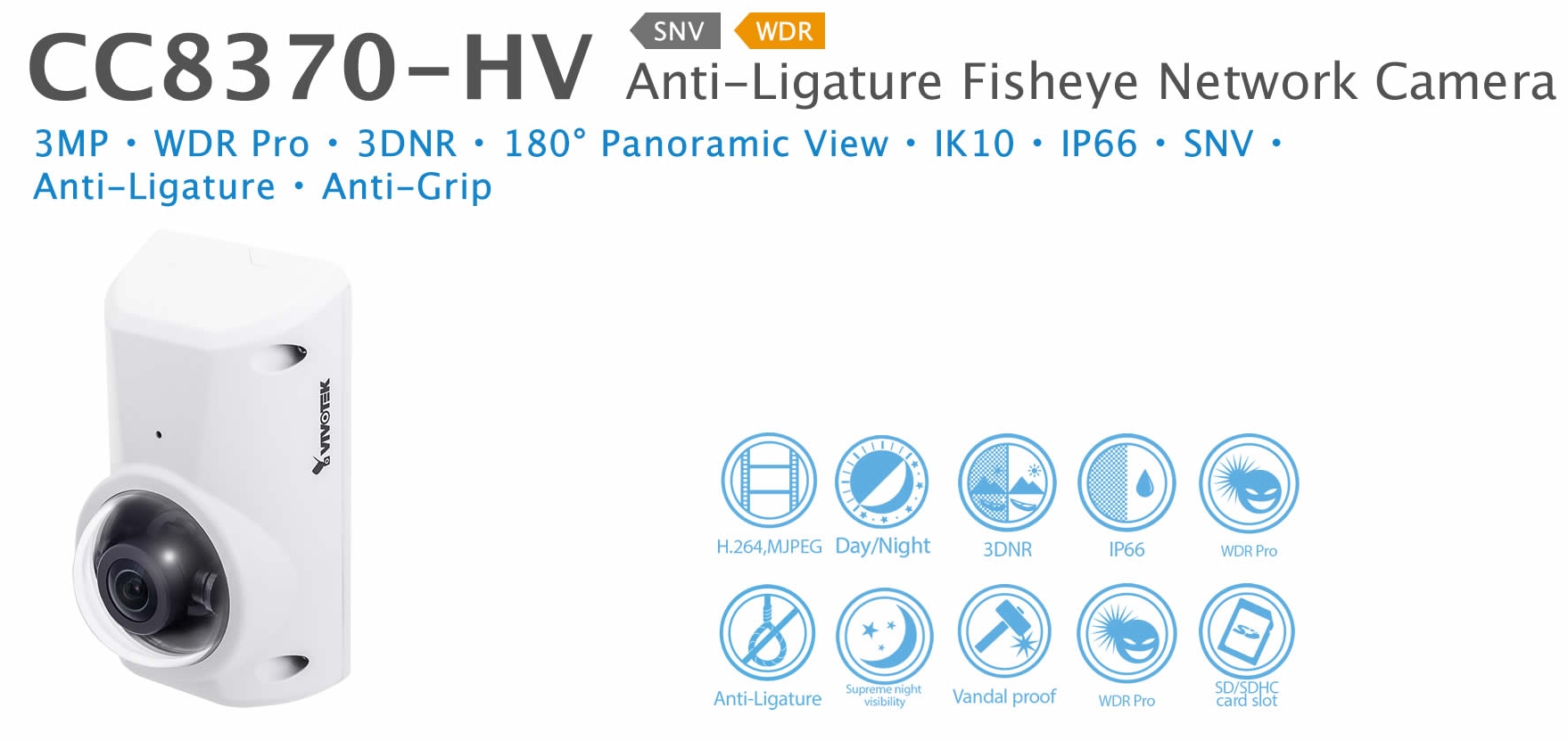

VIVOTEK's CC8370-HV is a vandal-proof fisheye network camera offering up to 30 fps at 3-Megapixel resolution. With its unique anti-grip design and inconspicuous appearance, the CC8370-HV plays a life secure guard role in unique security environments. Without ligature edges, it will effectively eliminate self-harm and suicide happen, ideal for detention house, holding cells, psychiatric ward, mental hospital, and correctional institution. Featuring 180° horizontal panoramic views with adjustable 25° tilt angle, the camera allows users amazing flexibility of viewing angles and options. The camera's weather-proof compact size also makes it an ideal choice for indoor and outdoor scenario such as boutique, convenience store, bank, school, parking lot and street.
The CC8370-HV can view at a wide angle of 180 degrees, providing complete video security with no dead angles. Featuring WDR Pro, the camera captures both the dark and bright areas of an image and combines the differences to create a highly realistic representation of the original scene. Further, with added SNV technology, high-quality full-color surveillance video becomes possible even under low-light conditions. These combined features enable the camera to provide video quality remarkably close to the capabilities of the human eye. When installing the unit, the unique mounting design facilitates easy installation on a wall or desktop in order to capture faces at eye level. Further increasing the level of surveillance, a built-in microphone which records sound within a 5 meter radius.
The CC8370-HV also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual 32-channel recording software, users can simply and quickly set up an easy-to-use IP surveillance system.
Download PDF
▍KEY FEATURES
• 3-Megapixel CMOS Sensor
• 30fps @ 2048x1536
• Anti-Ligature Design
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• 180° Horizontal Panoramic View
• ±25° Tilt Lens
• WDR Pro (100dB) to Provide Extreme Visibility in High Light Contrast Scenes
• Video Rotation
• Built-in Microphone
• SNV (Supreme Night Visibility)
• 3D Noise Reduction for Low-light Conditions
• Real-time H.264 and MJPEG Compression (Dual Codec)
• Built-in IEEE 802.3af Compliant PoE
• Built-in MicroSD/SDHC/SDXC card slot
▍SPECIFICATIONS
The CC8370-HV can view at a wide angle of 180 degrees, providing complete video security with no dead angles. Featuring WDR Pro, the camera captures both the dark and bright areas of an image and combines the differences to create a highly realistic representation of the original scene. Further, with added SNV technology, high-quality full-color surveillance video becomes possible even under low-light conditions. These combined features enable the camera to provide video quality remarkably close to the capabilities of the human eye. When installing the unit, the unique mounting design facilitates easy installation on a wall or desktop in order to capture faces at eye level. Further increasing the level of surveillance, a built-in microphone which records sound within a 5 meter radius.
The CC8370-HV also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual 32-channel recording software, users can simply and quickly set up an easy-to-use IP surveillance system.
Download PDF
▍KEY FEATURES
• 3-Megapixel CMOS Sensor
• 30fps @ 2048x1536
• Anti-Ligature Design
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• 180° Horizontal Panoramic View
• ±25° Tilt Lens
• WDR Pro (100dB) to Provide Extreme Visibility in High Light Contrast Scenes
• Video Rotation
• Built-in Microphone
• SNV (Supreme Night Visibility)
• 3D Noise Reduction for Low-light Conditions
• Real-time H.264 and MJPEG Compression (Dual Codec)
• Built-in IEEE 802.3af Compliant PoE
• Built-in MicroSD/SDHC/SDXC card slot
▍SPECIFICATIONS
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/2.8" progressive CMOS |
| Maximum Resolution | 2048x1536 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.6 mm |
| Aperture | F2.0 |
| Field of View | 180° (Horizontal) 130° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.05 Lux @ F2.0 (Color) |
| Pan / Tilt / Zoom | ePTZ 4x digital zoom IE plug-in |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | In both compression modes: 30fps @ 2048x1536 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | Above 58.8 dB |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Image Settings | Adjustable image size,quality and bit rate;Time stamp,text overlay,flip &mirror &rotate;Configurable brightness,contrast,saturation,sharpness,white balance,exposure control,gain,backlight compensation,privacy masks;Scheduled profile settings |
| Audio | |
| Audio Capability | Audio input |
| Compression | G.711,G.726 |
| Interface | Buit-in Microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection,manual trigger,periodical trigger,system boot,recording notification,camera tampering detection,audio detection |
| Alarm Events | Event notification using HTTP,SMTP,FTP,NAS server and SD Card File upload via HTTP,SMTP,FTP,NAS server and SD card |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 1 |
| Power Consumption | PoE Max. 4.9 W |
| Dimensions | 115 (D) x 65 (W) x 59 (H) mm |
| Weight | Net: 331 g |
| Casing | IP66,IK10 |
| Safety Certifications | CE,LVD,FCC Class B,VCCI,C-Tick,UL |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F~ 122°F) Working Temperature: -20°C ~ 50°C (-4°F~ 122°F) |
| Warranty | 24 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x, 9.x, 10.x |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
