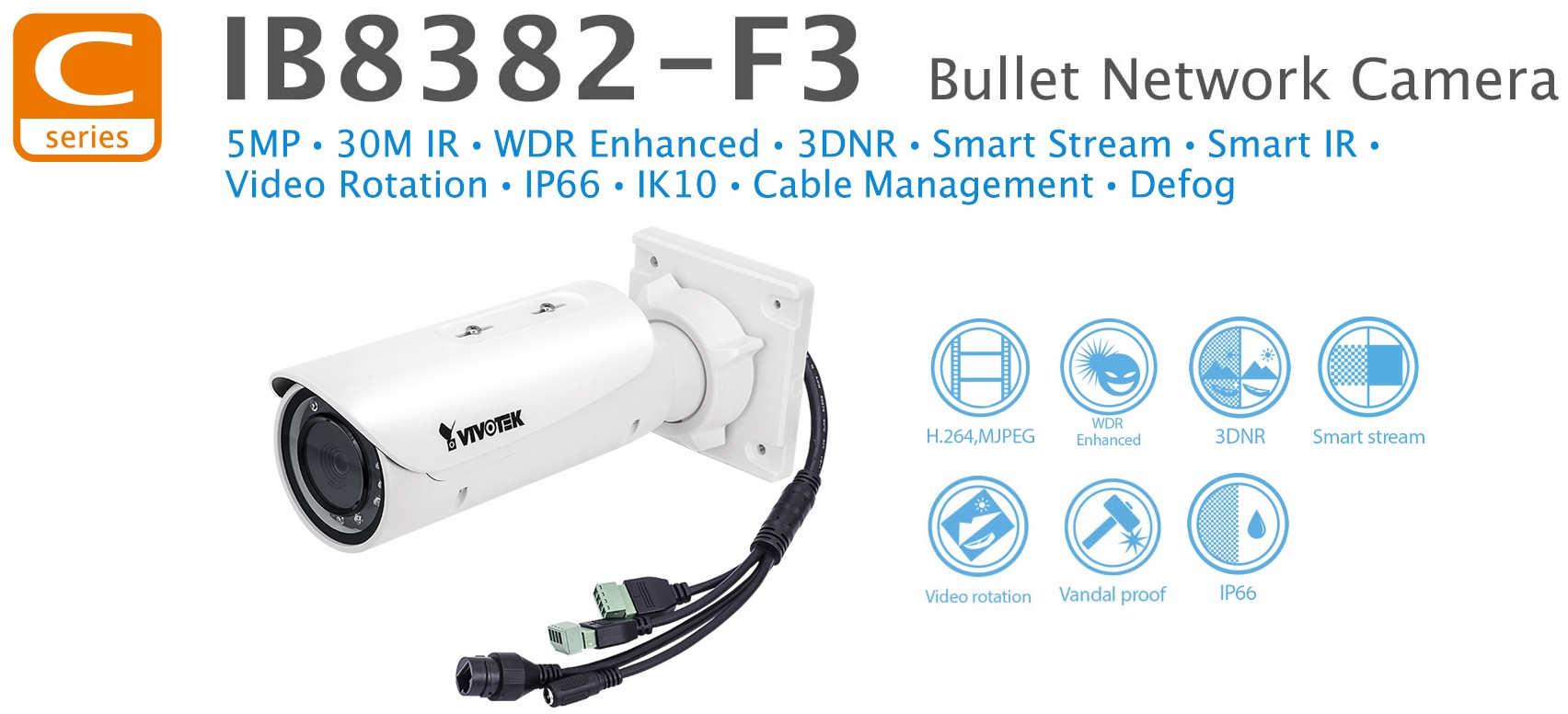

VIVOTEK's IB8382-F3 is a economic professional outdoor bullet network cameras in VIVTOTEK's 5MP Lite series which offer up to 15 fps at 5-Megapixel or 30 fps at 1080p resolution at a competitive price. Equipped with a new high resolution image sensor, different from other 5MP cameras, the IB8382-F3 provides sharper image quality and finer detail at a cost-effective price. And with powerful 3D Noise Reduction technology and Smart Stream technology the IB8382-F3 can also optimize resolution for a desired object or area to maximize efficiency of bandwidth usage.

Increasing its simple operation, the IB8382-F3 provides fixed focus without electrical power. To provide higher resolution in outdoor and harsh environments, VIVOTEK's IB8382-F3 is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10-rated housing provides protection against acts of vandalism or other impacts.

With the highly flexible VADP (VIVOTEK Application Development Platform), users can extend the features of this series by adding third-party applications for the IB8382-F3. Thus the IB8382 series - IB8382-F3, IB8382-EF3, IB8382-T, IB8382-ET, is not only equipped with multiple focusing methods and wide temperature range options, is but ideal for a wide variety of applications.

Download PDF



▍KEY FEATURES

• 5-Megapixel CMOS Sensor
• 15 fps @ 2560x1920, 30 fps @ 1920x1080
• 3.6 mm Fixed-focal Lens
• Removable IR-cut Filter for Day & Night Function
• Built-in IR Illuminators, Effective up to 30 Meters
• Smart IR Technology to Avoid Overexposure
• Smart Stream to Optimize Bandwidth Efficiency
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
• 3D Noise Reduction for Low-light Conditions
• Video Rotation for Corridor View
• Two-way Audio
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• VIVOTEK VCA (Video Content Analysis) Support





▍SPECIFICATIONS
Model IB8382-F3: Fixed-focal
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 1Gb
RAM 4Gb
Camera Features
Image Sensor 1/3.2" Progressive CMOS
Maximum Resolution 2560x1920 (5MP)
Lens Type Fixed-focal
Focal Length f = 3.6 mm
Aperture F2.1
Field of View 68° (Horizontal)
51° (Vertical)
89° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Enhanced
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination 0.089 Lux @ F2.1 (Color)
0.001 Lux @ F2.1 (B/W)
Pan/tilt/zoom Functionalities ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators Built-in IR illuminators, effective up to 30 meters
with Smart IR
IR LED*8
On-board Storage Slot type: SD/SDHC/SDXC card slot
Seamless Recording
Video
Compression H.264 & MJPEG
Maximum Frame Rate 15 fps @ 2560x1920
15 fps @ 2048x1536
30 fps @ 1920x1080
In both compression modes
Maximum Streams 4 simultaneous streams
S/N Ratio Above 65 dB
Dynamic Range 70 dB
Video Streaming Adjustable resolution, quality and bitrate, Smart Stream
Image Settings Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D Noise Reduction, Video Rotation, Defog
Audio
Audio Capability Two-way audio (full duplex)
Compression G.711, G.726
Interface External microphone input
Audio output
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface 10 Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
VCA* Line crossing detection, field detection, loitering detection
Alarm and Event
Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System Fixed focus
Connectors RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input DC 12V
IEEE 802.3af/at PoE Class 0
Power Consumption Max. 9 W
Dimensions Ø 88 x 293 mm
Weight Net: 1264 g
Casing Weather-proof IP66-rated housing
Vandal-proof IK10-rated metal housing (Casing Only)
Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick
Operating Temperature Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F~ 122°F)
Warranty 24 months
System Requirements
Operating System Microsoft Windows 7/8/Vista/XP/2000
Web Browser Mozilla Firefox 7~43 (Streaming only)
Internet Explorer 7/8/9/10/11
Other Players VLC: 1.1.11 or above
Quicktime: 7 or above
